PSTN+GSM alarm systems with 32 wireless+6 wired zones

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TX-GSM&TEL-LCD-1

Production Capacity: 50000pcs/month

Delivery Date: 4-7 working days

network: PSTN+GSM dual network

voice recording: yes

wired zones: 6 wired zones

Means of Transport: Ocean,Land,Air

Packing: Standard export neutral col...

Brand Name: TEAMS

SMS alarm: yes

Wireless zones: 32 wireless zones

LCD display: yes

PSTN+GSM alarm systems with 32 wireless+6 wired zones
Voice recording,SMS alarm,Remote monitoring,LCD display,PC setup.

Main Feature:

1) Compact design, Blue/Orange backlight, big LCD Screen Display.

2) Networks intelligent switch function of the main panel, when the land-line is normal, main host will alarm through land-line in priority; when land-line is cut off, the main host will automatically alarm through GSM network.

3) GSM network alarm function, support SMS remotely control main panel: ARM,DISARM,CHECK,etc. Also sending SMS alerts when alarming.

4) Main host operation, phone call operation (Including listening in remotely, start speaking, check alarm info, arm/disarm remotely control,etc. ) and voice menu indication from phone call or main host.

5) Can be used as a normal telephone to call any phone number.

6) Support 32 wireless & 6 wired zones and 8 wireless remote control, Wired sensors can be set Normal On/Normal Off trigger mode.

7) Function setting via PC USB connection with software application tool.

8) Multi-Password feature: One administration password, three user passwords.

9) Can pre-store 6 groups of alarm telephone No., 3 groups of alarm SMS No..

10) 30s voice recording feature.

11) Learning code matching between alarm main host and wireless sensors, Can set mute/sound alarm mode of separately sensor.

12) Telephone line anti-cutting function: alarm and be able to dial via the neighbor' s alarm system.
13) Built-in rechargeable lithium battery with high capacity; Lasting for 12 hours/1200mA.

14) AC power off alarm/Low battery alarm function; AC/DC power auto switch function.

15) Support door chime feature.

16) Support door bell feature, can learn up to 5 door bells.
17) 3 groups of timely arming/disarming the alarm system (Can set the time via DAY=Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday).
18) Siren hooting time: 1 to 30 minutes programmable. (set by user, if more than 30 minutes the siren will hoot all the time.)
19) Time delay to arm: 0 to 99 seconds programmable.
20) Time delay to alarm: 0 to 99 seconds programmable.
21) Can record 100 event logs.

22) 1CH Relay Output feature, Max 2,500W(250V/10A).

23) Can work with Ademco protocol alarm receiving centre. (Optional function)

Main Technician Parameter:

1. DTMF: low frequency group 697,770,852,941Hz; high frequency group1209, 1336,1477,1633Hz; frequency deflection: ≤1.5%.

2. Electronic lever: low frequency group—9dbm 3dbm, high frequency group—701dbm, 3dbm.

3. Wireless Frequency: 315Mhz/433Mhz

4. Standby current: <35mA @ DC 12V

5. Working current: <200mA

6. Environmental condition: -10℃-+45℃, humidity: 95%

7. Power supply: Input: 220V~50Hz, 110V~60Hz ; Output: 9~12V / 1~2A

8, GSM network Quad-band: 850/900/1800/1900Mhz

Standard unit :

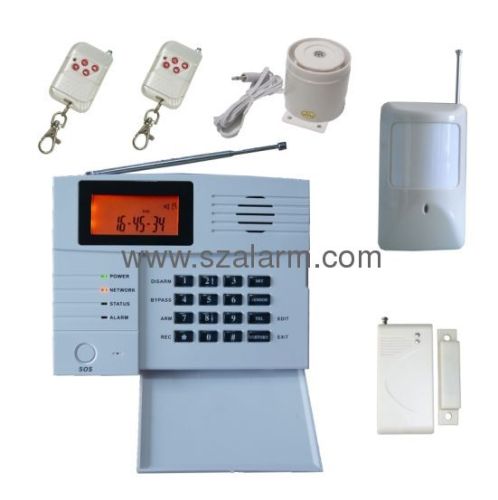

1 pcs GSM&TEL alarm main host, 2 pcs remote controllers, 1 pcs PIR motion detector, 1 pcs door sensor, 1 pcs mini siren, 1 pcs power adapter, 1 pcs back up lithium battery,1 pcs land-line cable, 1 pcs USB data cable,1 pcs CD disk & 1 set User manual.

Optional accessories:

Mini USB cable(including CD Disk_Software),

Wireless doorway keyboard,

Wireless door bell button.

Other sensors:

smoke detector,

gas leakage detector,

glass breaking sensor,

CO detector,

heat detector,

IR beam/baluster,

wireless strobe siren,etc.
